Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation

Name: Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation
Brand: SMART AUTOMATION
Price: 1 USD

China Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation wholesale

Brand Name : SMART AUTOMATION

Model Number : SM

Certification : ROHS CE ISO9001

Place of Origin : CHINA

MOQ : 100

Payment Terms : Western Union, T/T

Supply Ability : 100000PCS

Delivery Time : 45DAYS

Packaging Details : STANDARD EXPOTR PACKAGE

Torque : 30mNm upto 6Nm without gearbox

Power : 10w upto 500w

Speed : customed

Voltage : 12v 24v 36v 48v 60v

Contact Now

Electric Dc Actuator Motor

Motor Specifications:

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 50 54 66

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

Customized Specification and OEM

Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation

high torque Brushless Dc Motor customized specification:

Voltage : 12v 24v 36v 48V 60vdc

power : 10w to 2000w

Speed: 1pm upto 20000rpm
Dia.: 22mm 28mm, 30mm, 36mm, 42mm, 57mm, 60mm, 63mm, 70mm, 80mm, 86mm, 110mm

Certification: ISO9001, CE , RoHs

Shaft Modifications and Motor Adders Available: Gearbox, Encoder and Controller OPTION

Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation

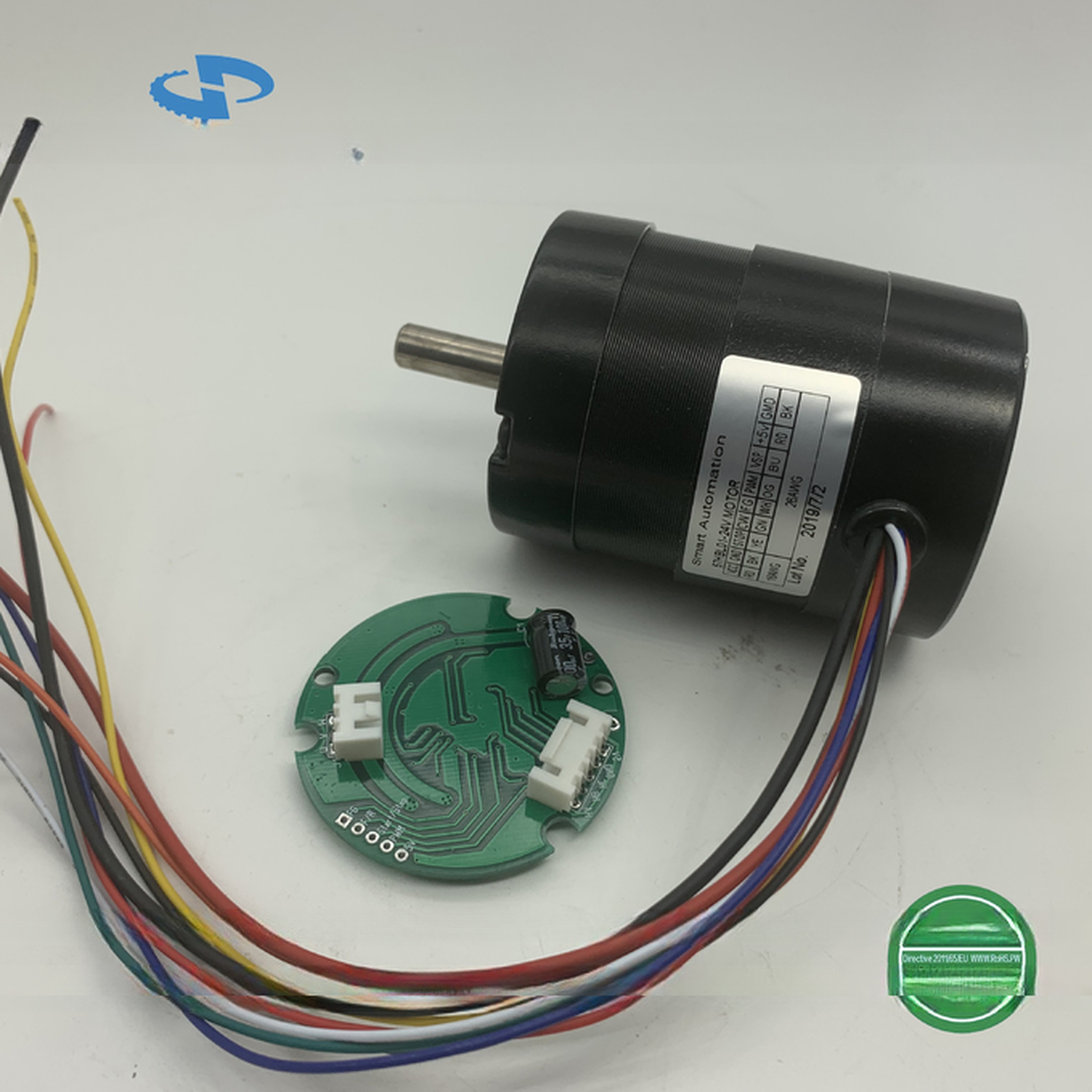

57mm bldc

Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation

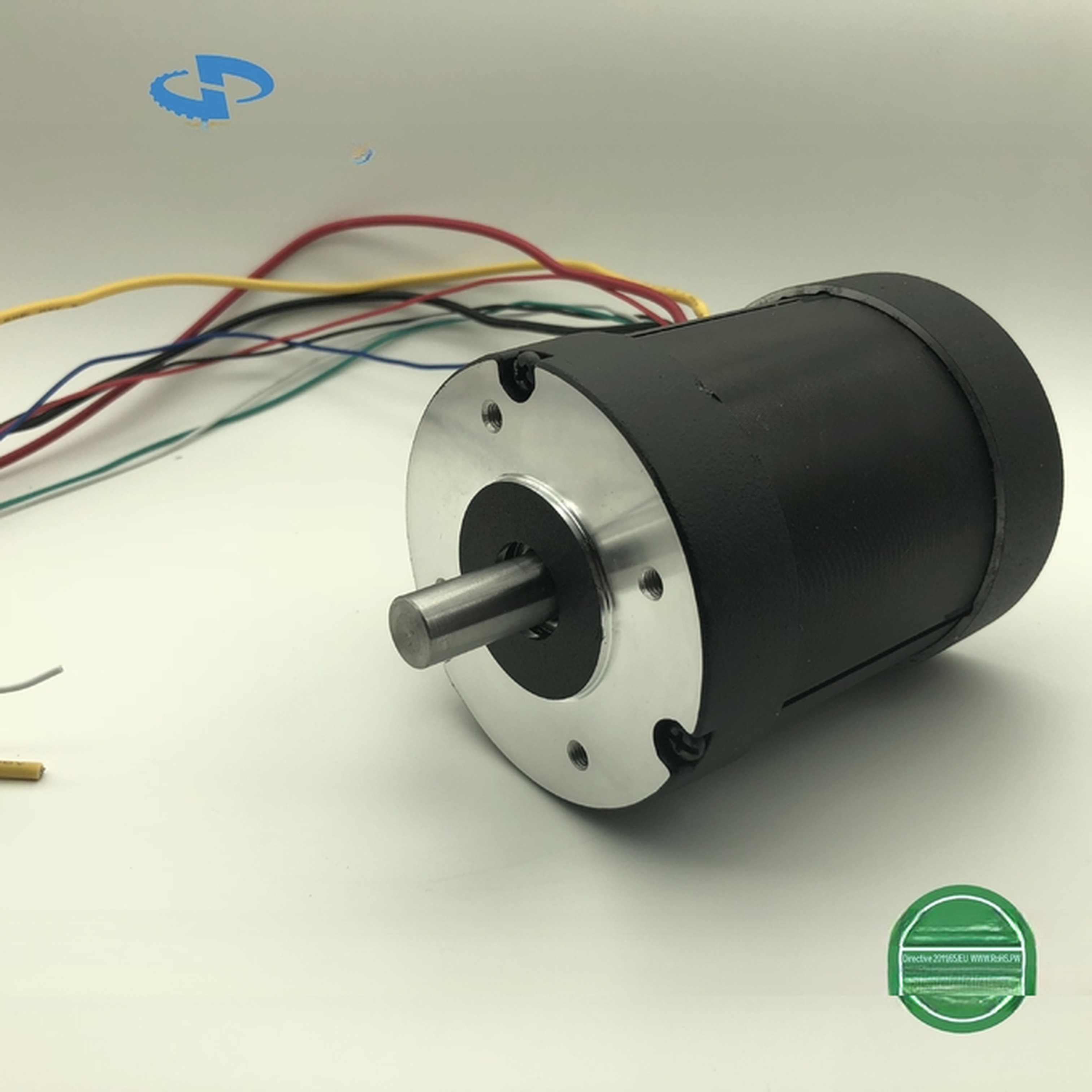

80mm bldc

Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation

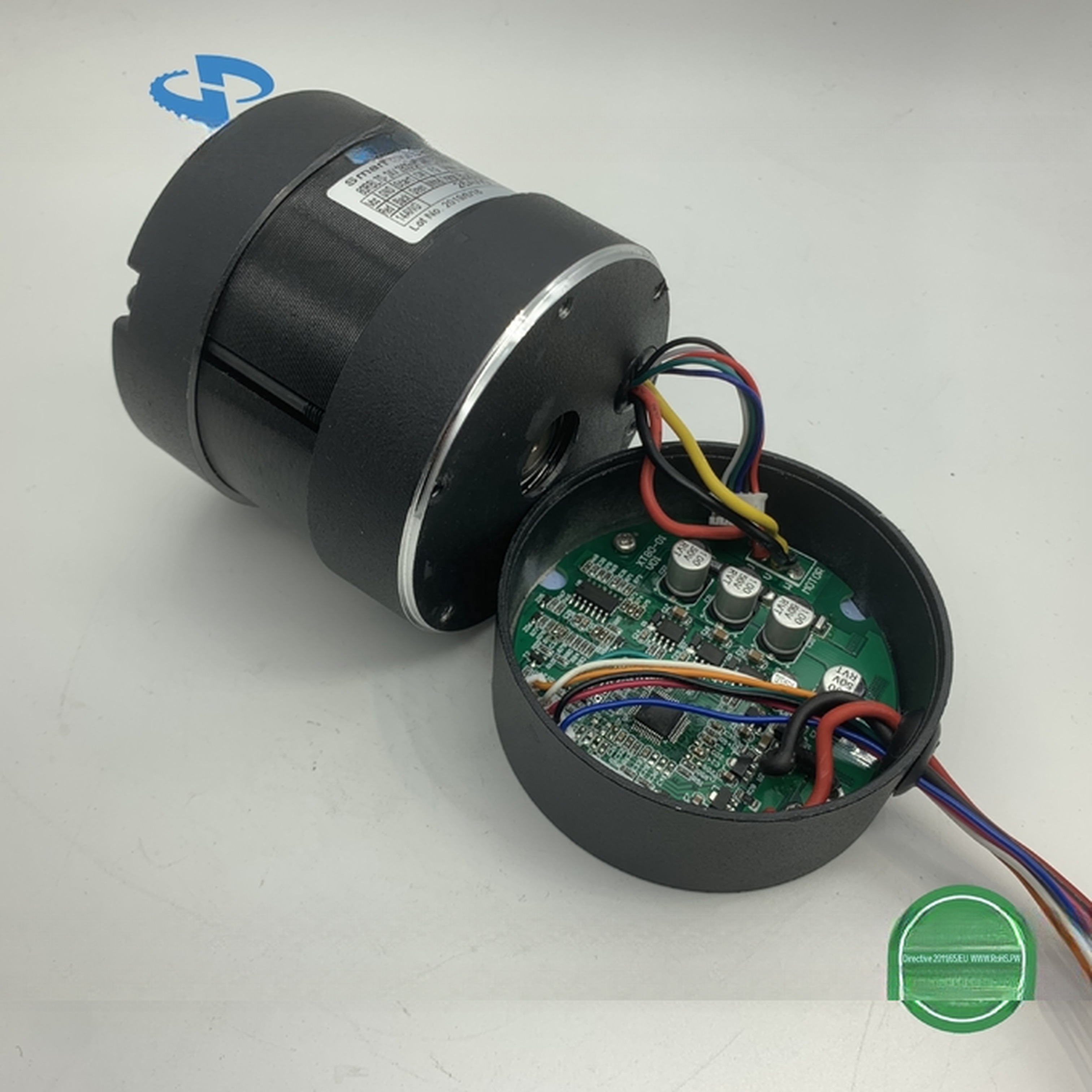

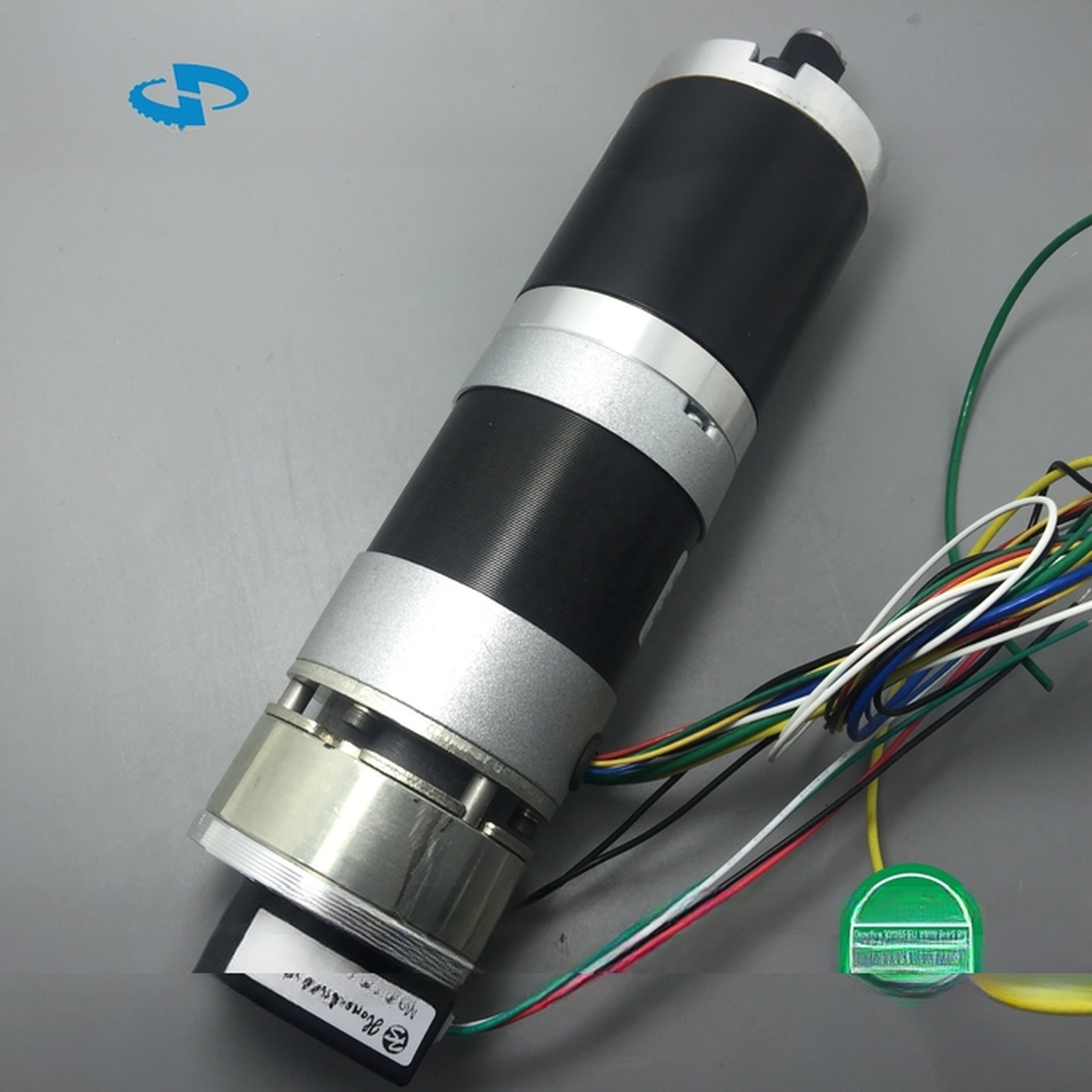

BLDC gearbox and brake encoder controller integrated

Custom 12v 24v 40v 48v high performance Brushed Brushless Electric Dc Actuator Motors for linear motion and actuation
